WE HAVE A DREAM AND VISION OF ALL IP CONVERGENCE

MOBILE BACKHAUL

OUR COMPANY HAS A DREAM AND VISION OF ALL IP CONVERGENCE









Mobile Backhaul Switches serve as critical transport devices that connect Radio Access Networks (RAN) to the core network, aggregating and forwarding large volumes of traffic generated at the wireless edge. As a key infrastructure component, they directly impact mobile network performance, service quality, and overall reliability, making them essential for modern telecom network deployments.



With the rapid expansion of 5G Advanced and the growing adoption of AI-driven services, mobile networks are experiencing continuously increasing traffic demands, along with stronger requirements for ultra-high speed, ultra-low latency, and large-capacity data transport. As a result, Mobile Backhaul Switches must go beyond simple traffic forwarding, delivering high-performance packet processing, flexible traffic engineering, and precise network control and management to ensure stable operation of next-generation mobile services.



ubiQuoss Mobile Backhaul Switches are based on extensive experience in building 4G LTE Carrier Ethernet networks and are already deployed in Korea’s commercial 5G networks. They provide advanced clock synchronization and efficient Segment Routing-based traffic control to meet stringent backhaul requirements. Built on a high-performance hardware platform with proven networking technologies, they effectively handle increasing 5G Advanced and AI-driven traffic, enabling scalable and future-ready mobile backhaul network architectures.

Mobile Backhaul Switch

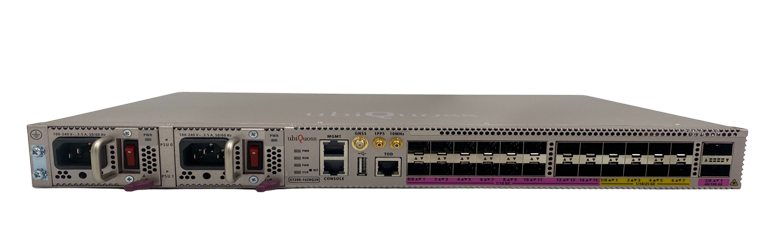

E7200-16Z8Q2H
Details

The E7200-16Z8Q2H is a Layer 3 Mobile Backhaul switch designed to connect mobile base stations to the core network. It can also be used as a fronthaul solution, providing precise clock synchronization and flexible network configuration. This enables deployment across various network topologies while effectively addressing the growing demands of 5G Advanced traffic and future network requirements.



Features



● 300Gbps non-blocking switching fabric
● Deep packet buffer for burst traffic absorption

● 2 × 40G/100GbE QSFP28 uplink ports
● 16 × 1/10GbE SFP+ ports and 8 × 1/10/25GbE SFP28 ports

● High availability
    - Redundant hot-swappable power supplies, N+1 fan redundancy

● Precision timing and ultra-low latency
    - SyncE and IEEE 1588v2 Boundary Clock (BC) Class B/C

● Flexible traffic engineering and per-service QoS with Segment Routing and HQoS

● Service OAM support: IEEE 802.1ag CFM and ITU-T Y.1731

● Network performance monitoring
    - TWAMP-based real-time performance measurement

● SDN-ready management with NETCONF support
