WE HAVE A DREAM AND VISION OF ALL IP CONVERGENCE

G.HN

OUR COMPANY HAS A DREAM AND VISION OF ALL IP CONVERGENCE

The explosive growth in network service devices such as smartphones, smart TVs, and UHD IPTVs have been paralleled in a correspondingly dramatic growth in the demand for high quality and high capacity multimedia content. The demands for these contents led to an apparent increase in broadband Internet speeds 3 to 5 times faster, from 100 Mbps to 500 Mbps.


G.hn(Gigabit Home Network)



However, the maximum broadband speeds for home users are 100 Mbps, regardless of the service being used, whether it be VDSL2, LAN or FTTH. For users living in apartment complexes with existing phone line-based (VDSL2) and UTP-based (Cat5) Internet services to have access to Giga-class internet, the home broadband access needs the speed of hundreds of Mbps.


ubiQuoss has successfully addressed this concern with its G.hn solution, which is the world’s first to achieve maximum performance with reduced interference in bundled cables. A G.hn network consists of a GAM (G.hn Access Multiplexer) connected to the broadband backbone and a GNT (G.hn Network Terminal) installed at the user side. In essence, the G.hn solution requires only the existing VDSL equipment (DSLAM/modem) to be switched to Giga-class equipment (GAM/GNT), making it a cost-effective and viable solution.

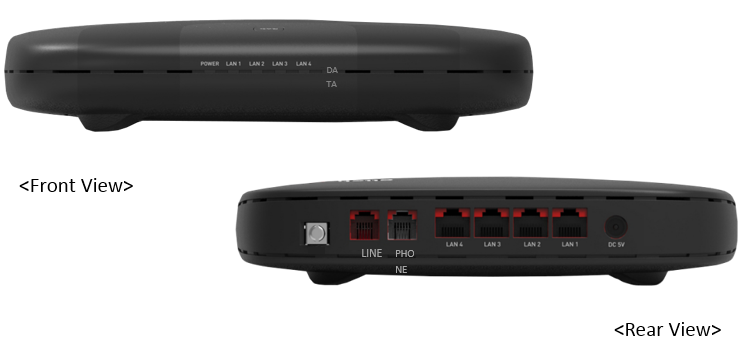

G.hn Network Terminal

C304G
Details

Overview



C304G is G.hn Network Terminal for access network application. C304G is optimized for high-speed access technology corresponding UHD based IPTV service by providing Giga-class service over existing phone line based on G.hn access technology.



It provides various services such as high speed Internet access, call service, and stable IPTV service by offering link stability in terms of dynamic adaptive bit-loading, FEC, and retransmission.



C304G can be applied to multiple application environment such as small building, SOHO or individual house where data, voice and video are all in need simultaneously.



Features of C304G



●  Up to 500Mbps (unidirection)
●  Configurable DS/US bandwidth ratio (5:5, 7:3 or 8:2)

●  Offer stable service and throughput through optimized cable deployment environment
        - ensure IPTV service quality

●  Subscriber’s interface : 1 PSTN port, 1 Data port, 4 LAN ports
●  Minimize crosstalk interference (NEXT Mitigation)

●  Dying Gasp
●  Voice splitter

●  Surge protection circuit
●  Power consumption: max. 7.5W

●  Size : 180(W) x 150(D) x 38(H)mm
●  Weight : 400g
