WE HAVE A DREAM AND VISION OF ALL IP CONVERGENCE

FTTx

OUR COMPANY HAS A DREAM AND VISION OF ALL IP CONVERGENCE



ubiQuoss has long been a pioneer in the industry with its broadband and multi-service access solutions. ubiQuoss is at the forefront of technological innovation, with large-scale global deployments of its high-capacity FTTx multi-service systems. The OLT and ONU products are designed to provide high performance and cost-effective solutions that meet the growing bandwidth requirements of operators. Due to technological advancement in communication methods and home entertainment, the need for fiber networks has become imperative to meet the exponentially growing bandwidth requirements.


Our industry-leading FTTx solution, which has been recognized as high scalability, flexibility, superior performance and high reliability, is the perfect solution to meet and prepare for the rapidly growing bandwidth and future network evolution.




DPoE (DOCSIS Provisioning of EPON)


DOCSIS® Provisioning of EPON (DPoE™) Specifications create an architecture and serve as necessary specifications for enabling Ethernet Passive Optical Network (EPON) equipment to be provisioned using existing DOCSIS-based provisioning systems and policies, and to provide network services over EPON access networks to business customers.



The DPoE Specifications have three primary goals to:



1) Facilitate multi-vendor interoperability—the DPoE specifications will provide a common foundation for vendors to build products that will not only interoperate with the DOCSIS back office servers, but with other vendor’s equipment. As a result, DPoE Optical Network Unit (ONU) vendors can expect their product to interoperate with others who provide DPoE Systems.



2) Allow for use of DOCSIS provisioning—DOCSIS provisioning systems provide configuration information for millions of DOCSIS devices. The DPoE specifications provide requirements for EPON equipment to be provisioned using the same DOCSIS servers.



3) Provide Metro Ethernet services as defined by the Metro Ethernet Forum (MEF)—the DPoE specifications provide an architecture and requirements to support the Ethernet Private Line (EPL) service.



EPON


ubiQuoss provides Ethernet Passive Optical Network (EPON). EPON is an IEEE Ethernet architecture, which is cost-effective, simple to integrate and maintain. The EPON standard offers high interoperability between devices that support Ethernet, ensures voice and video traffic quality through the Ethernet packet transmission scheme and QoS, and is capable of reaching subscribers within a 20 km range.





1G/10G-EPON OLT (Headend, High-capacity OLT)

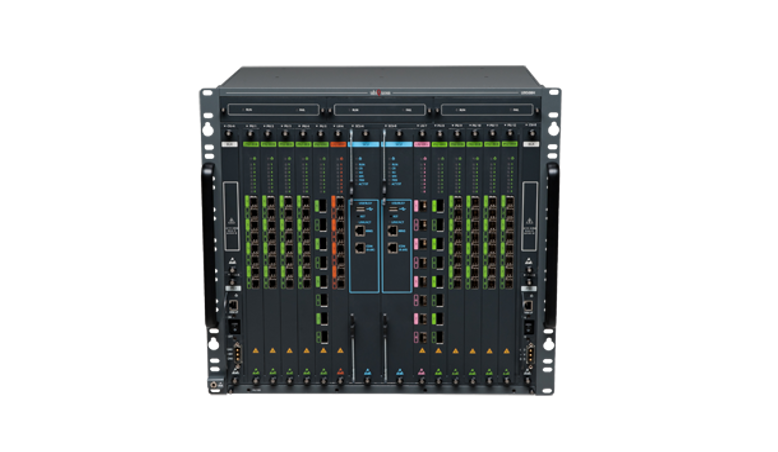

U9500H
Details

Overview



The U9500H supporting 1G/10G-EPON is a high density, high capacity, and highly featured GEPON Optical Line Terminal. The U9500H, built on a latest Layer 3 switch platform, is the forefront solution in the PON based access network segment. U9500H can perfectly cover all the requirement of Triple Play Service (TPS) and beyond it. Due to its enhanced capacity and traffic management features, not only the services of today but also future ones can be handled aptly by U9500H.



The U9500H has total 14 slots that can accommodate 2 SCUs (Switch & Control units), 2 LIUs (Line Interface Units), and 10 PIUs (PON Interface Units). The LIU slots of The U9500H can accept 8-port 1GE card or 8-port 10GE card up to 2. The PIU slots can accept 8-port 1G EPON or 8-port 10G EPON card upto 10 cards.



By way of gradual installation of PIU and LIU besides the modular architecture, any network operator can exploit the scheme of ‘pay as you grow’ with U9500H. In the perspective of available service and necessary bandwidth U9500H will be the best possible future proof solution.



The U9500H incorporated full redundancy design for SCU and PSU to improve availability and reliability of the system. On top of that, The U9500H offers Layer 2 switching, Layer 3 routing, QoS, OAM, and Security features so that it can be placed and adapted to the network operation policy and configuration.



Features of U9500H



●  1920 Gbps non-blocking switch fabric
  Max 1.44 Bpps throughput
  Fully Redundant System
      - Switching Fabric and Control card
      - 2 x SCU (Switch & Control Unit)
        10 x PIU (PON Interface Unit)
        2 x LIU (Line Interface Unit)
        2 x PSU (Power Supply Unit)
  10 slots for PIU
      - Up to 80 x 1G/10G PON ports per chassis
  2 slots for Uplink Unit
      - Up to 16 x 10GE ports per chassis
      - 8 x 10GE ports or 4x10GE
        and 4 x 1GE ports per module
      - supporting SFP and SFP+ optic module
  Reliable power supply & fan modules
